BOLT FASTENER 20
211021/0

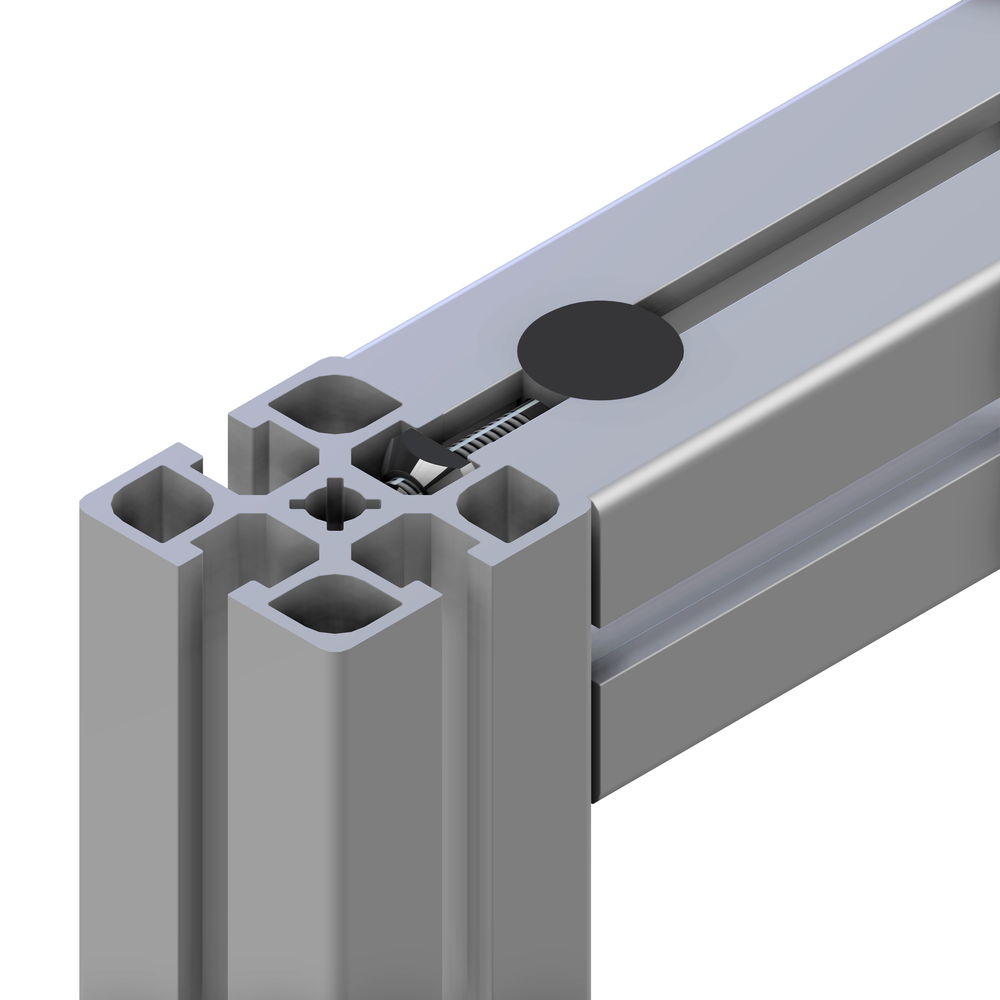

Bolt connector 20 for profiles series 45, ideal for retrofitting additional profiles onto supports in existing aluminum constructions.
Login for partner discounts.
Create an account
but
Login
Add to the popular

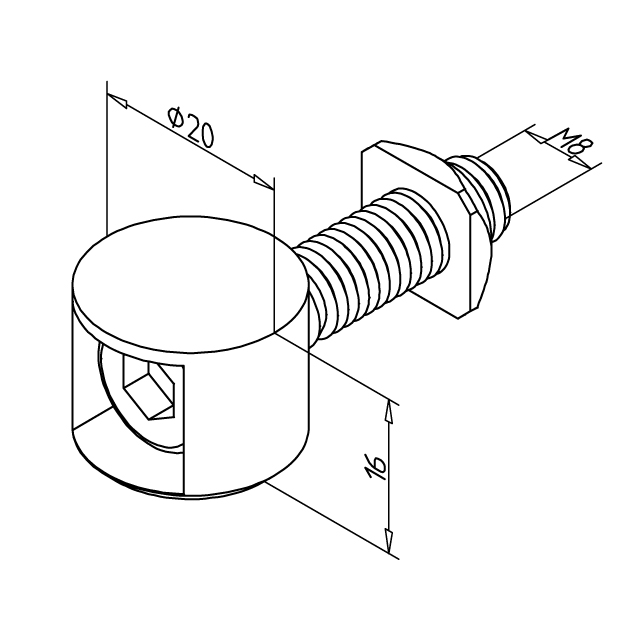

Technical data/items supplied
- Zinc, Pressure die-casting, galvanized
- With fastening material steel, zinc plated
- Weight = 0.036 kg/piece
Applications
- For connecting all profiles of the profile series 45
- Especially for post-mounting of additional profiles in existing constructions
- For connection of profile 45 x 19

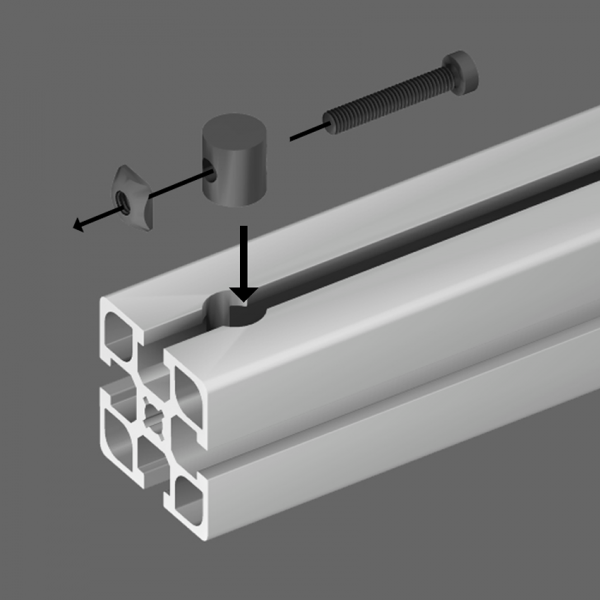

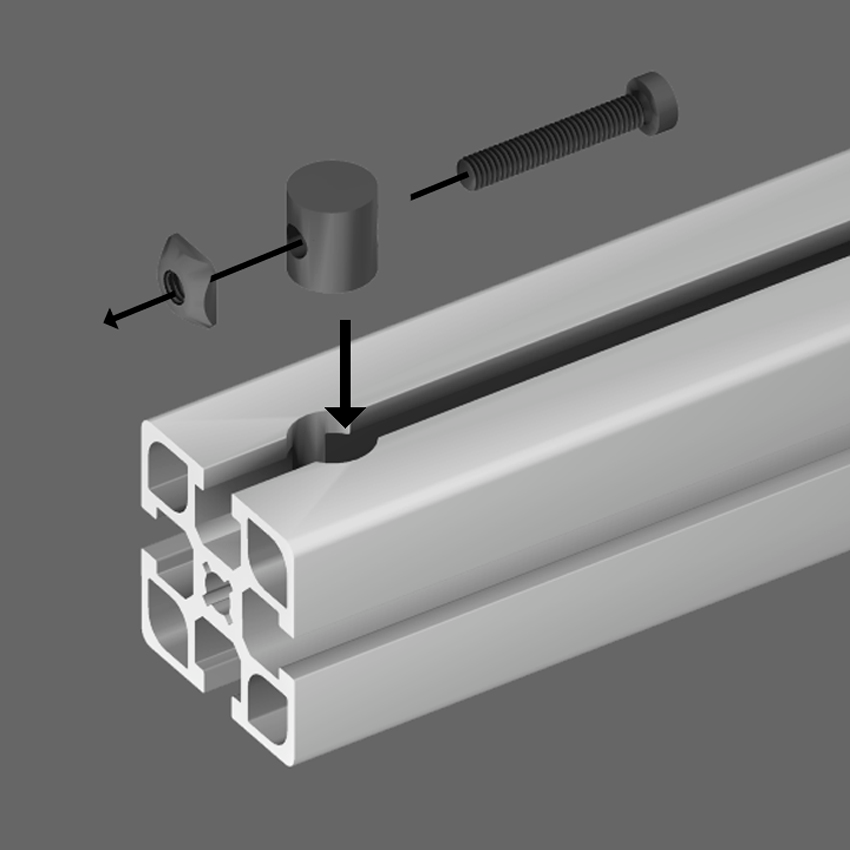

Assembly
- Insert the stepped bore Ø 7 x 20, 16 mm deep, positioned 22.5 mm from the end of the profile to the center of the groove
- Insert the connector and pre-tighten the screw with the ball head wrench SW 5
- Fastening with Allen wrench
- Recommended locking torque: 15 Nm
