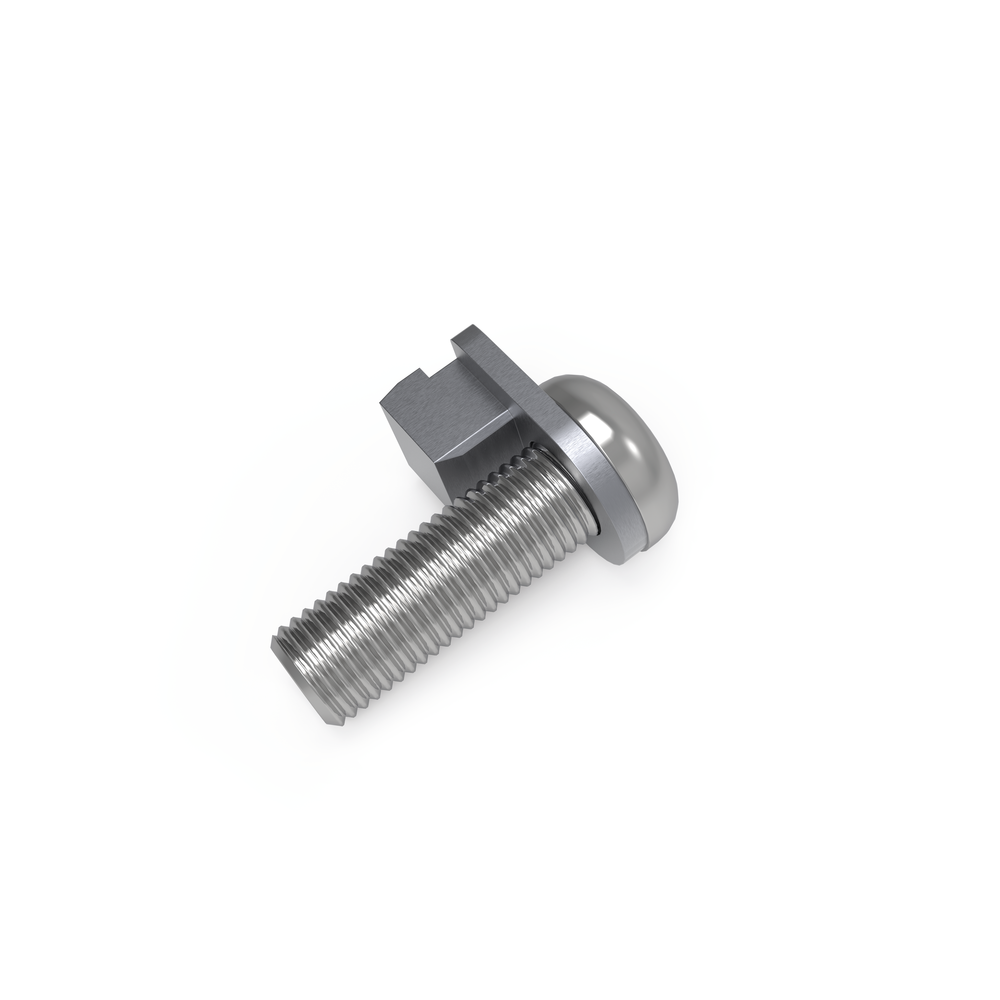

Screw connection 30 GD
210897/0
Screw connection 30 GD ensures reliable joining of 30 series aluminium profiles without extra machining. Enhances strength and stability.
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- Aluminium, Pressure die-casting, bright
- Anti-twist lock with fillister head screw
- Weight = 0.012 kg/piece
Applications

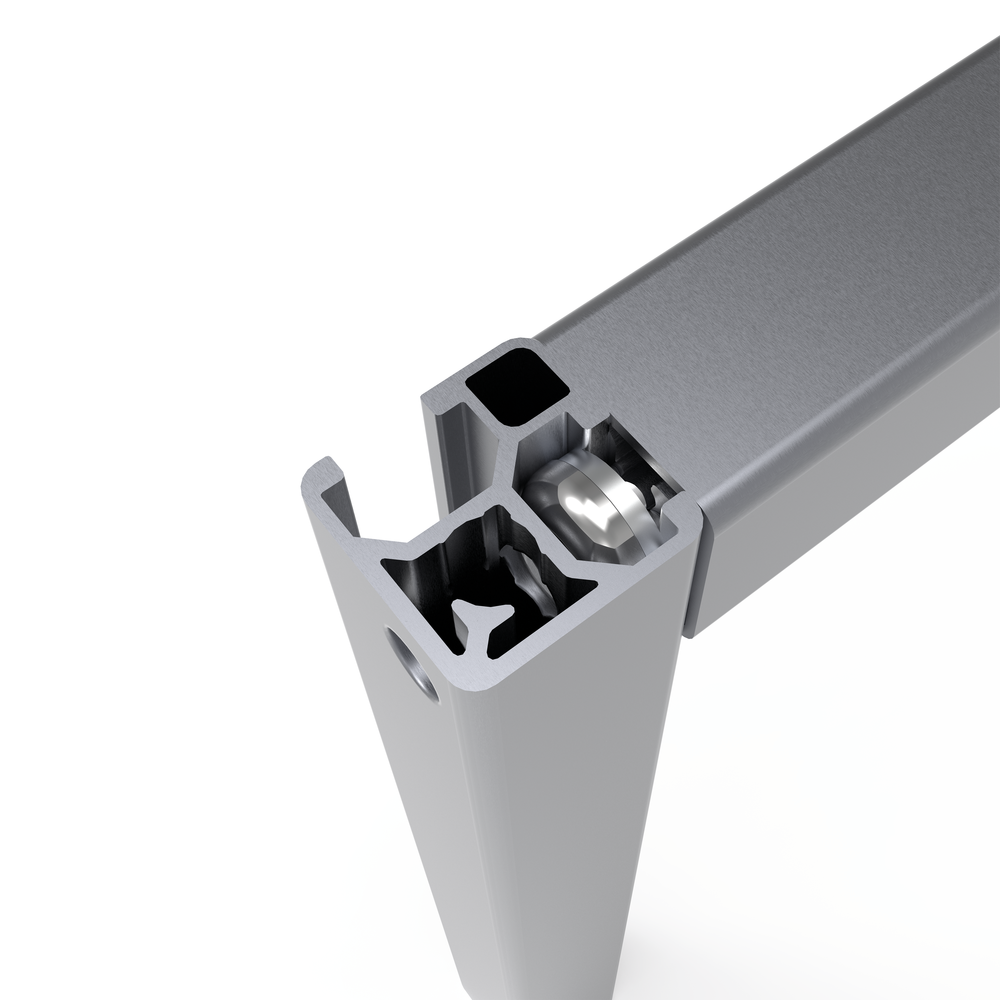

- Connection of Series 30 profiles
Assembly
- Insert thread M8 x 25 into the centre hole of the profile
- Insert into vertical profile through-hole Ø 7 mm
- Fix the screw with the anti-rotation device on the horizontal profile and insert it into the groove of the vertical profile
- Use Allen key to pull through bore Ø 7 mm
- Recommended tightening torque: 20 Nm
- The bore Ø 7 mm can be closed with plug 7 part no. 221215/1, should be used with our closed t-slot profiles
