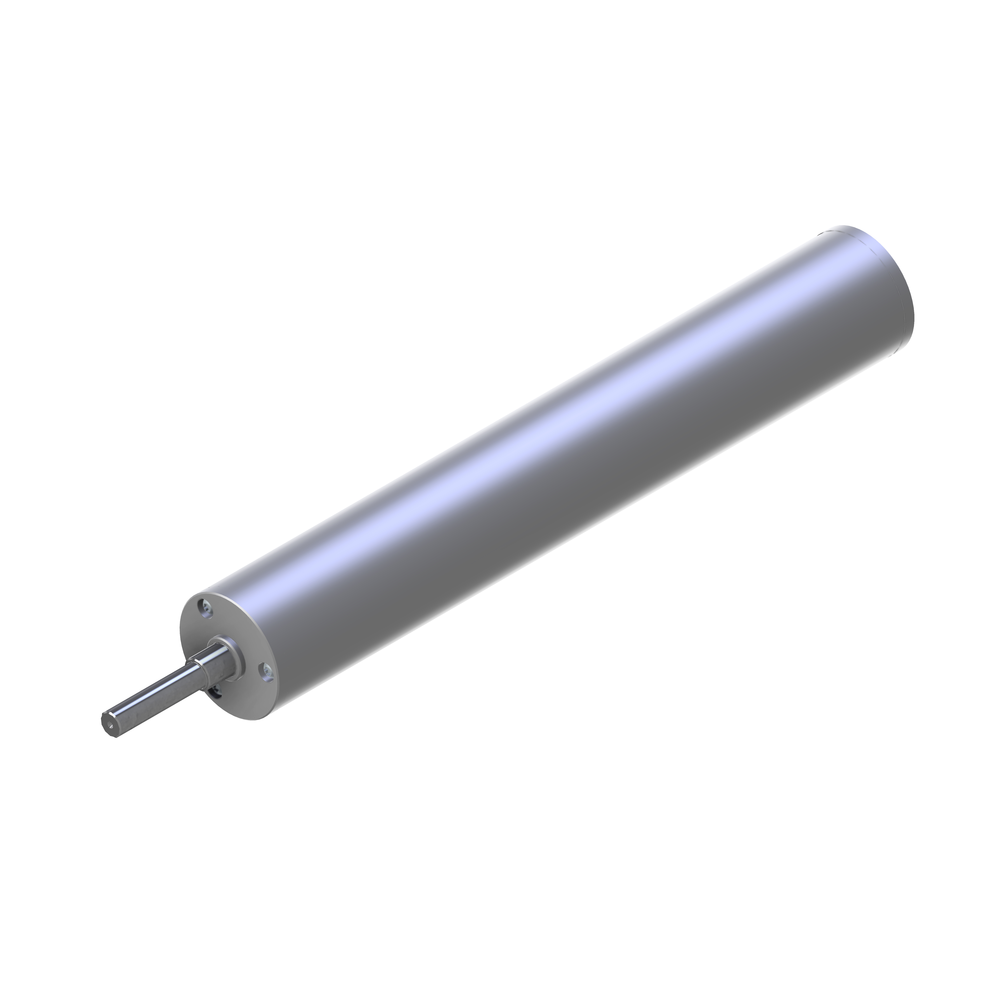

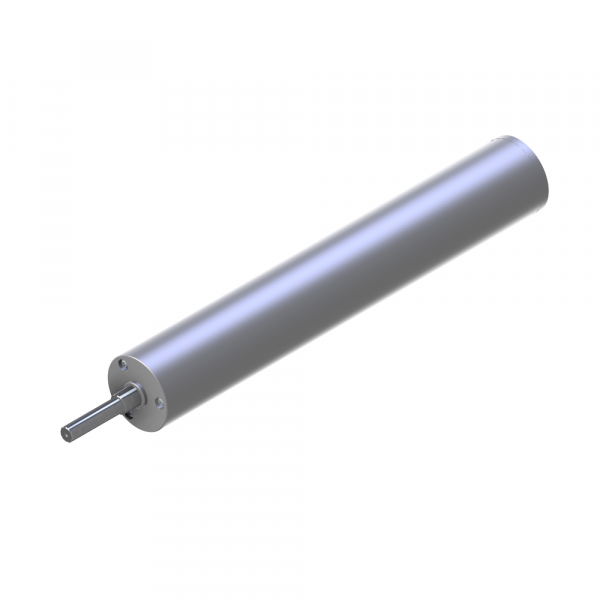

DRIVE DRUM 90 FOR PLUG-ON MOTOR D20
295035/0
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:
Technical data/items supplied
- Aluminium with shaft made of steel
- Turned round
- Shaft journal Ø 20 mm
- Please specify dimension L (belt width)
- Attention: L is not the outer diameter of the conveyor Ø95
- Weight = (basic weight) approx. 0.7 kg
- Extra weight = 1.506 kg/100 mm belt width
Applications
- MiniTec belt conveyor system with motor kit and conveyor bearing part no. 210985/0
- Upon request, we can supply the conveyor with mounted ball bearings. The bearings are hot pressed in a material-friendly manner. In addition, please order the following part no. 21.0902/0.
Assembly
- Insert the belt driving cylinder in the bearing housing on the motor side
- Mount conveyor bearing at opposite part part no. 210985/0
Related items
In stock in the central warehouse.
Delivery 2-4 weeks.
85,74 €
(incl. VAT)
70,28 €
(excl. VAT)
