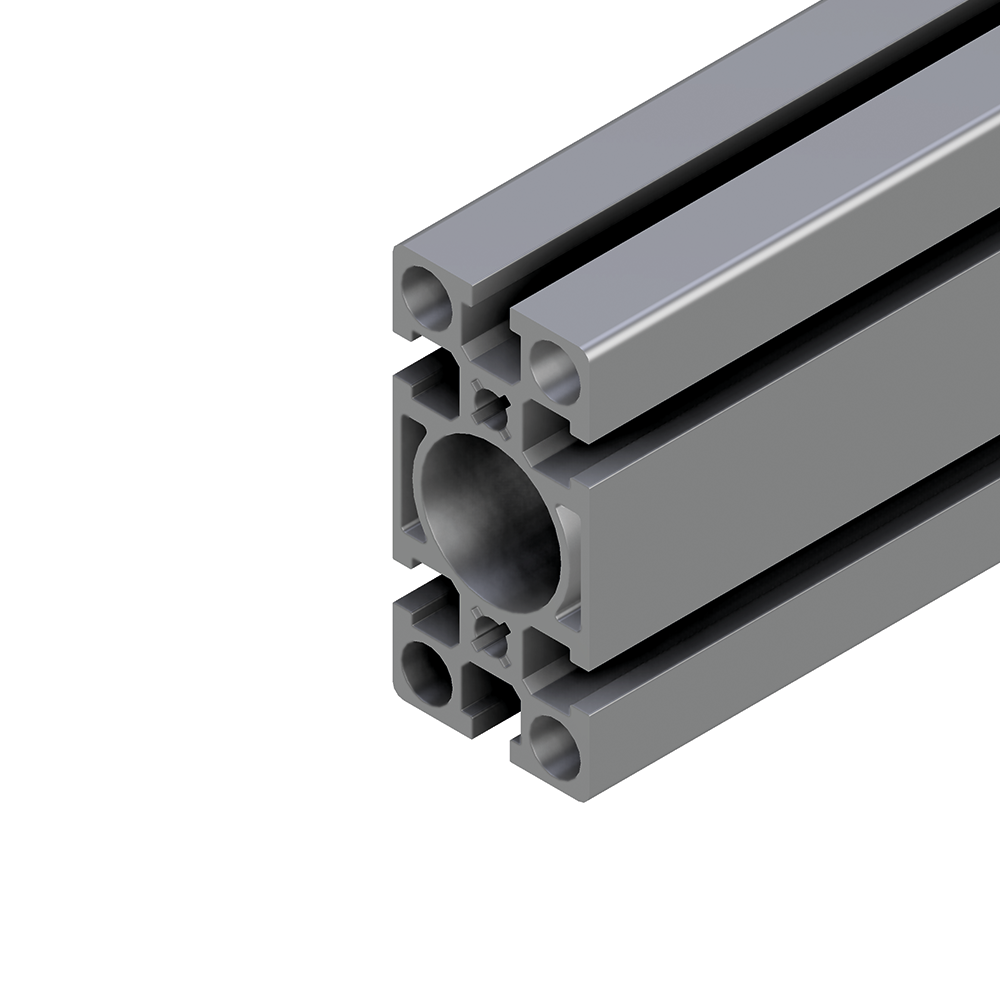

PROFILE 45X90 S

201017/0
Alu profile 45 x 90 S for industrial use. Explore our aluminium profile system – strong, modular, and easy to assemble.
Detailed description
Price: 49,60 €/m (60,51 €/m incl. VAT)
In stock

Make a list of different variations of this product:

Add to the list
Prosimo preverite polja za pravilen vnos mere?
List of selected items:
- You do not have the products added right now -

For additional machining of profiles (holes, threads, countersinking holes, angle cutting, milling, etc.), please contact us at prodaja@minitec.si.

Shipping costs
You have additional questions about this product?
Add to the popular

You can add to the product:

Technical data/items supplied

  • Aluminium, extruded, anodized E6/EV1
  • Ix = 113.487 cm4
  • Iy = 30.719 cm4
  • wx = 25.219 cm3
  • wy = 13.653 cm3
  • IT = 70.893 cm4
  • Weight = 3.860 kg/m
  • Bar length = 6 m
  • Packing unit = 24 m

Applications

  • All kinds of constructions
  • Linear guides LB as slide
  • Column guides
  • Implementation as compressed air line with base and transport plate and sealing set

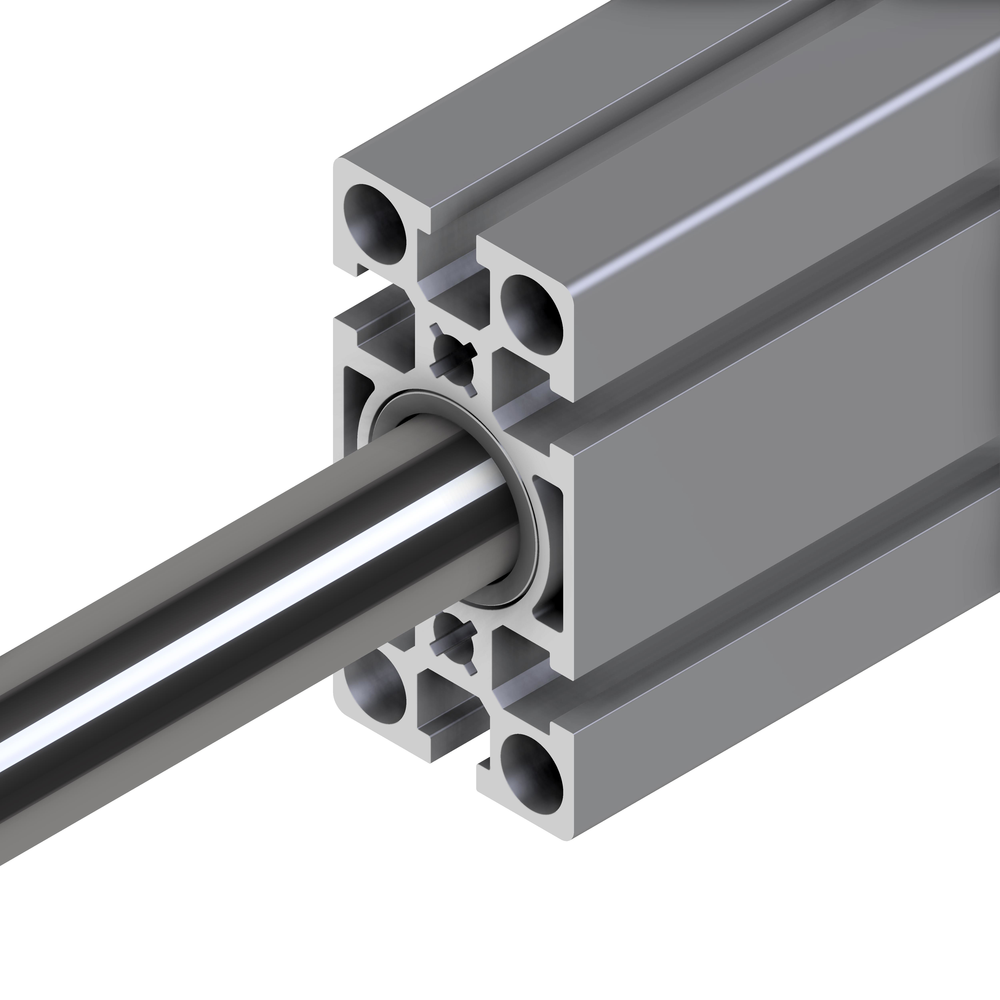

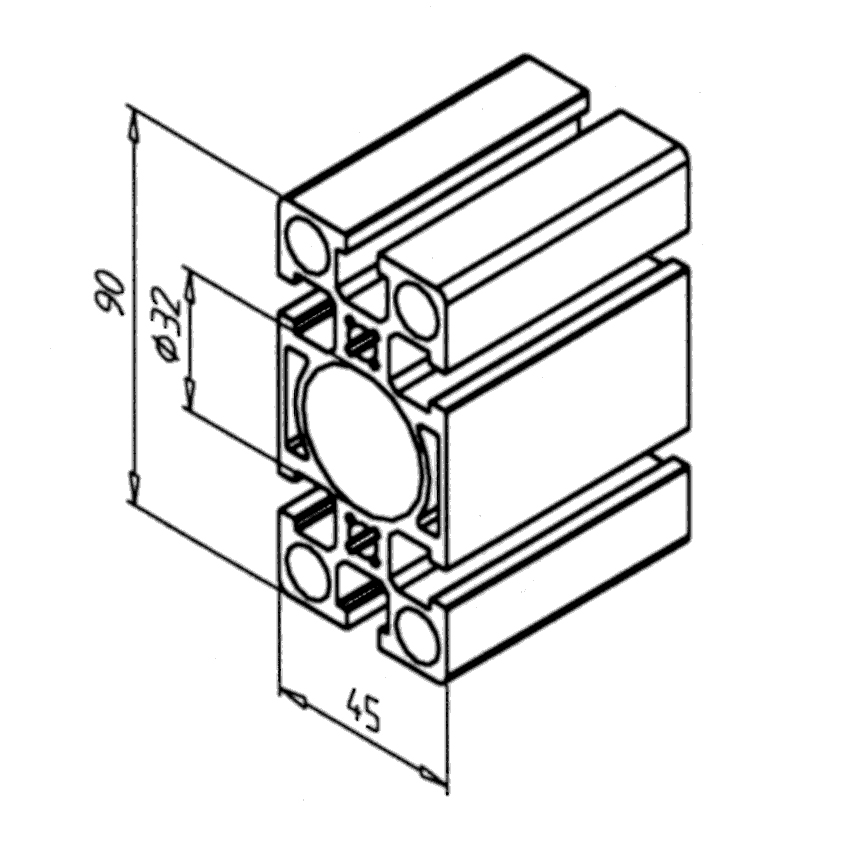

  • Central bore Ø 32 mm for ball-bushings LME 20, for ball-bearings 6201 or 6002, for compressed air piping or guiding of hydraulic add-in cylinders

Assembly

  • MiniTec power-lock fastener
  • Mounting bracket 45 or 90
  • Screw connection
