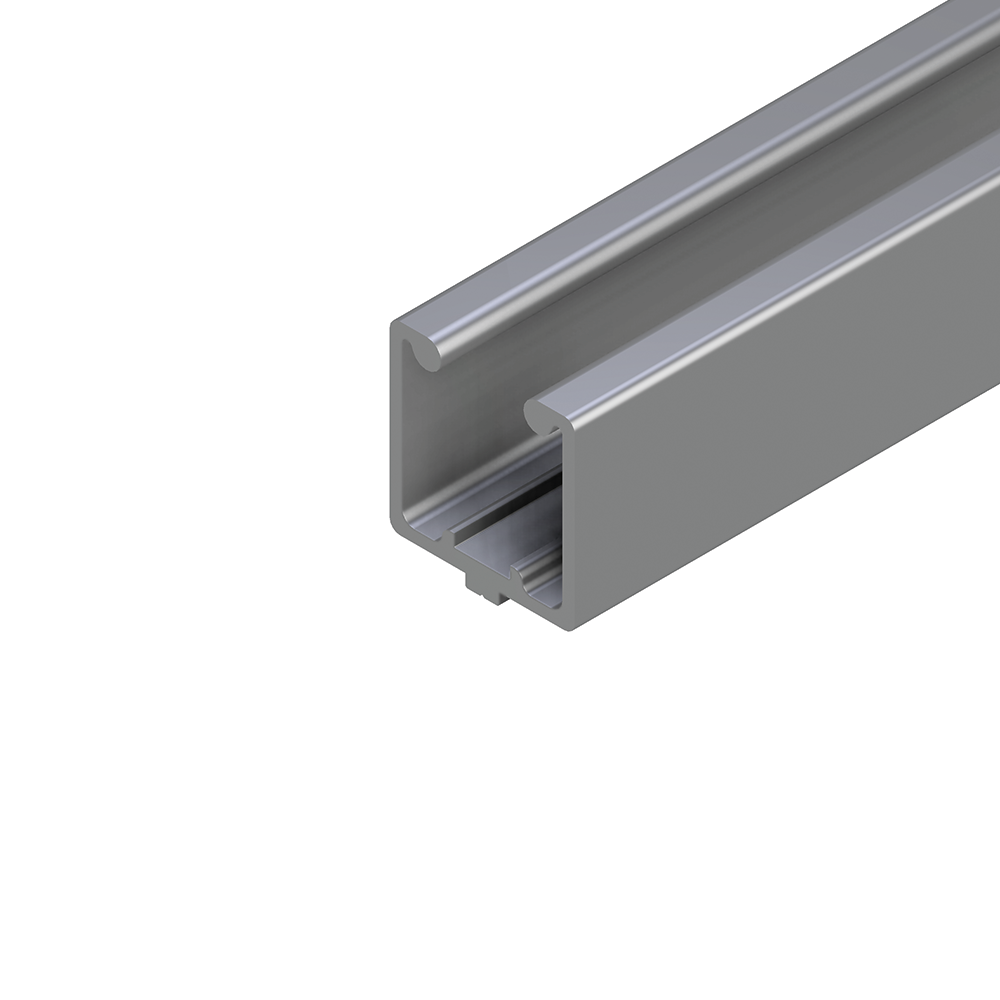

SLIDING DOOR PROFILE
201038/0
Alu profile for sliding doors. Explore our aluminium profile system – strong, modular, and easy to assemble.
Make a list of different variations of this product:
Prosimo preverite polja za pravilen vnos mere?
List of selected items:
- You do not have the products added right now -
For additional machining of profiles (holes, threads, countersinking holes, angle cutting, milling, etc.), please contact us at prodaja@minitec.si.
Login for partner discounts.
Create an account
but
Login
Add to the popular
You can add to the product:

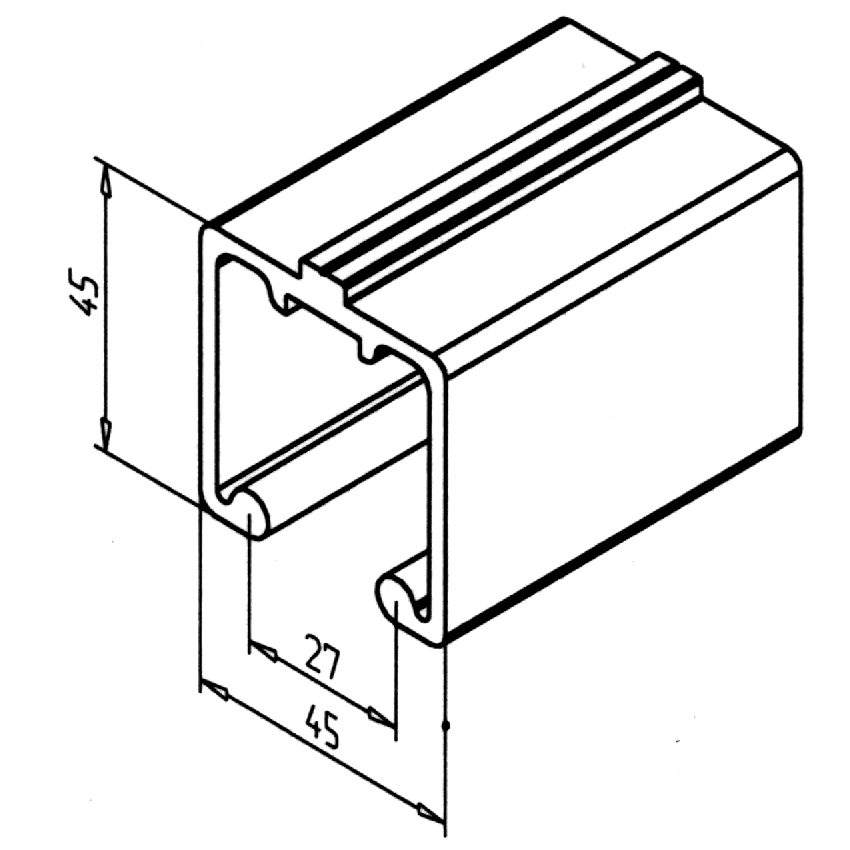

Technical data/items supplied
- Aluminium, extruded, anodized E6/EV1
- Ix = 15.347 cm4
- Iy = 15.597 cm4
- wx = 5.912 cm3
- wy = 6.932 cm3
- IT = 0.726 cm4
- Weight = 1.470 kg/m
- Bar length = 6 m
- Packing unit = 48 m
Applications
- Multi-leaf sliding doors
- Single-leaf sliding doors

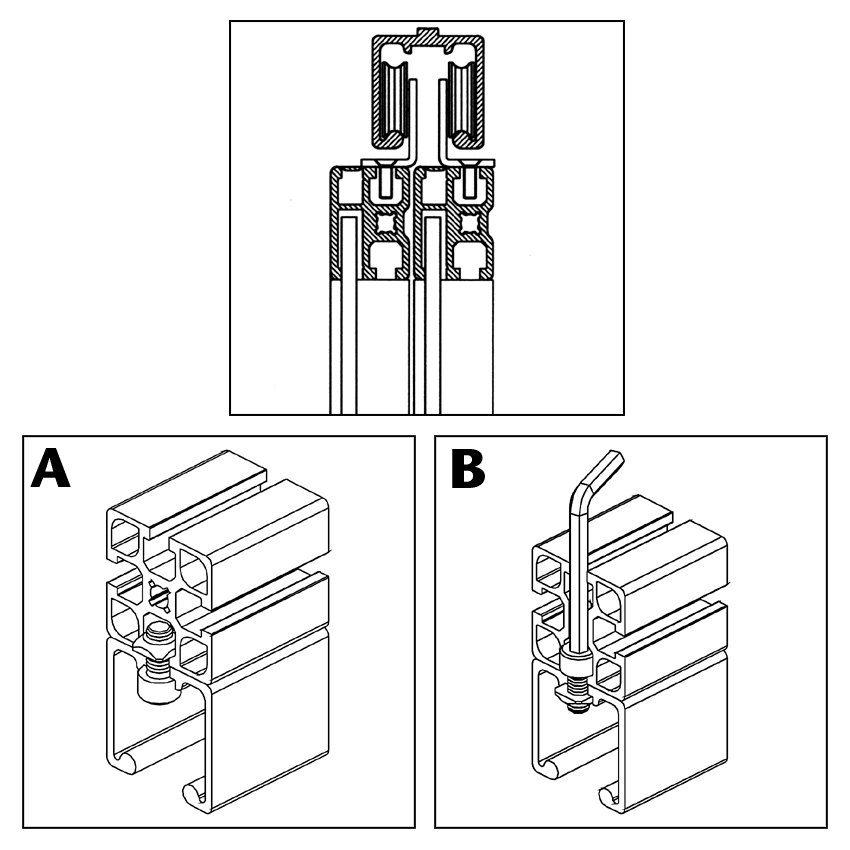

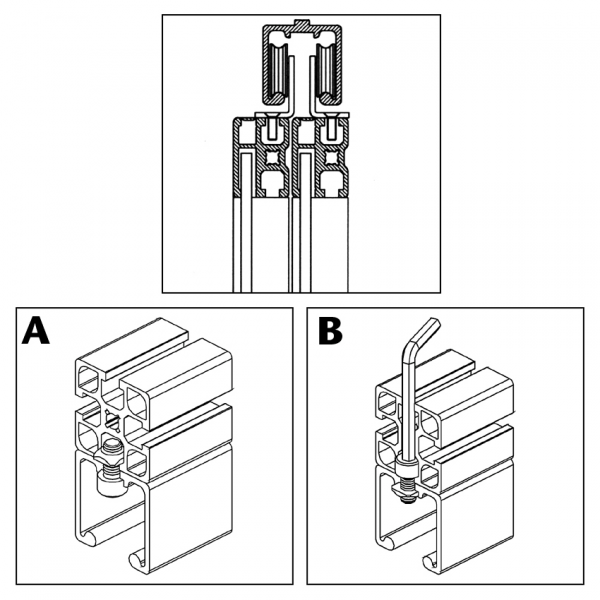

Assembly
- Drill Ø 8,5 mm holes in centering groove; bore pitch: 250 - 400 mm depending on the load
- A) Position M8 F square nuts in the supporting profile and fasten the sliding door profile with M8 x 25 hex socket cap screw
- B) Drill through or step holes into the carrier profile and insert square nut into the profile of the runner. Nuts are torsion-proof
