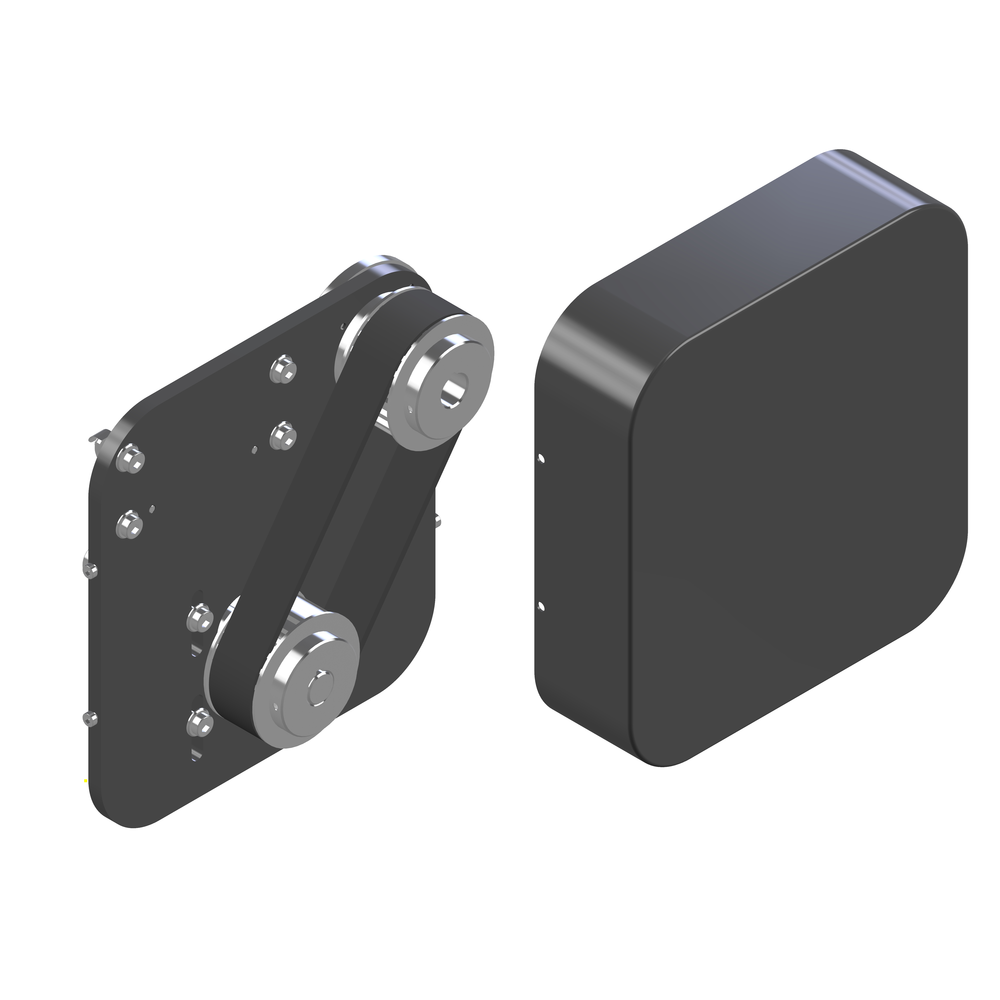

MOTOR MOUNTING KIT 90 - D20
295060/0
Login for partner discounts.
Create an account
but
Login
Add to the popular
Technical data/items supplied
- Motor plate and cover, steel, powder coated, grey
- Bearing housing with self-aligning bearing
- Belt driving cylinder ø 20 mm
- Timing belt 32 AT 10
- Fastening kit
- Weight = 5.973 kg/piece
Applications
- Belt-conveyors made of MiniTec aluminium profiles 90
- Suitable for mounting spur gear motors with hollow shaft Ø 20 mm flange Ø 120 mm

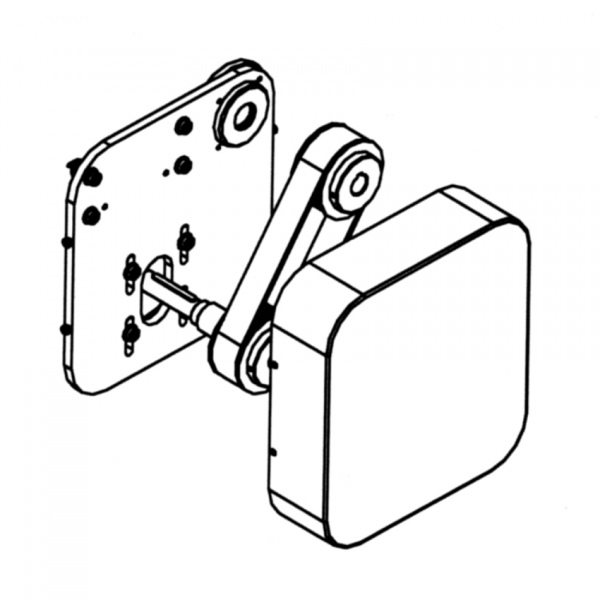

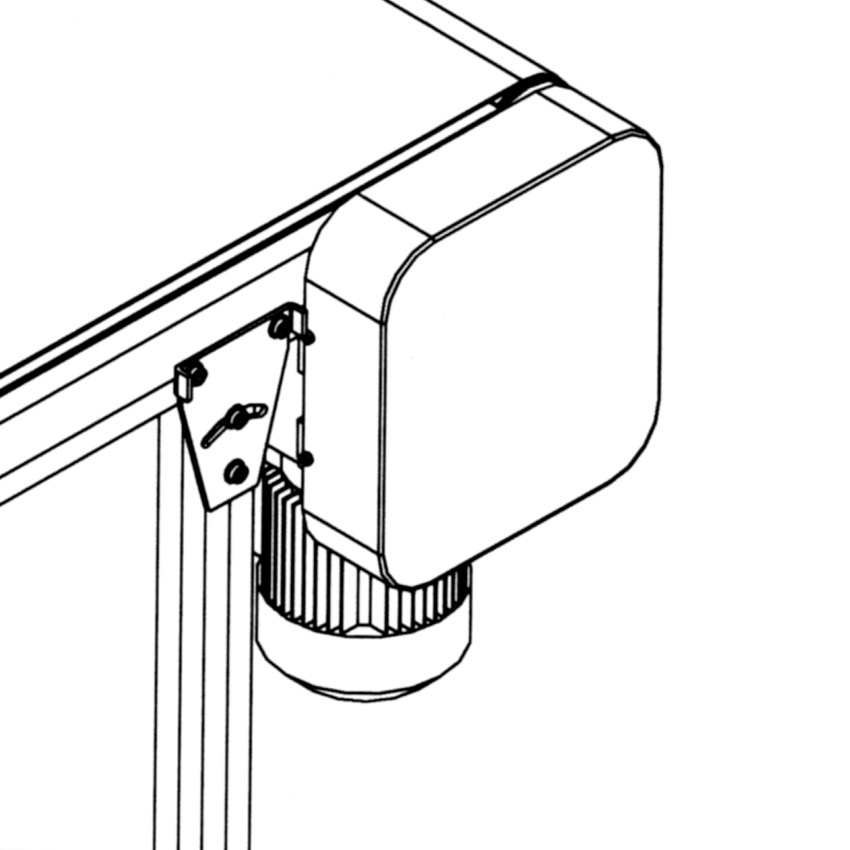

Assembly
- Screw the flange plate to the base frame, install the bearing housing with the self-aligning bearing
- Install and tension the motor and timing belt drive
- Insert belt driving cylinder, use conveyor bearing at opposite side part no. 210985/0
- Fit the cover
